Designed by Mike Lenehan, this is a completely new design, showcasing the latest in driver technology and crossover design. The cabinets are all new, featuring different and improved materials, refined construction methods that increase rigidity and further reduce energy storage and self noise. A new and more comprehensive measuring and testing regime has been implemented. Each speaker is individually matched and measured and auditioned against the reference. A lifetime of music enjoyment!

Product Specifications
Shipping
Warranty

Link

View full details

System 1

Speakers

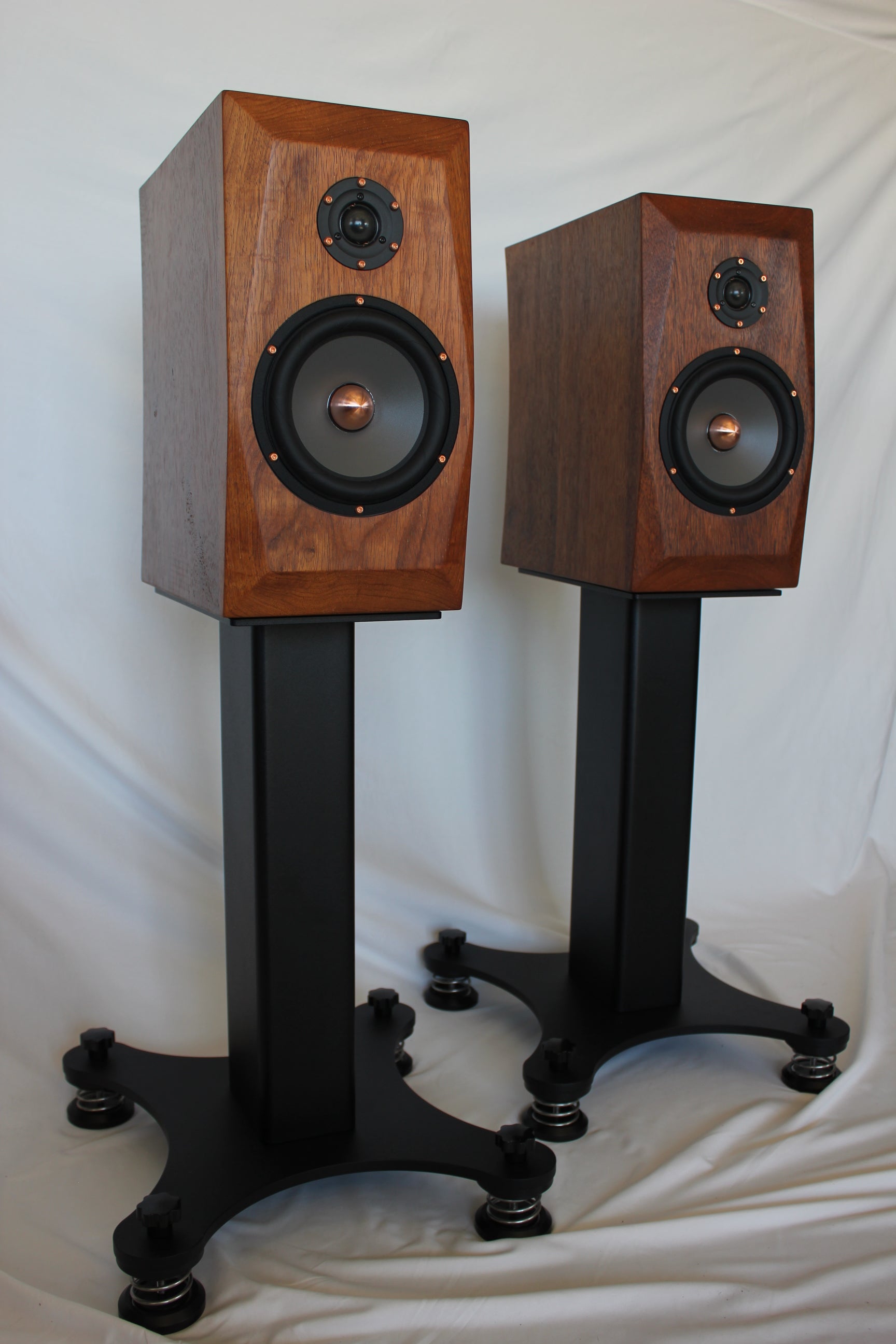

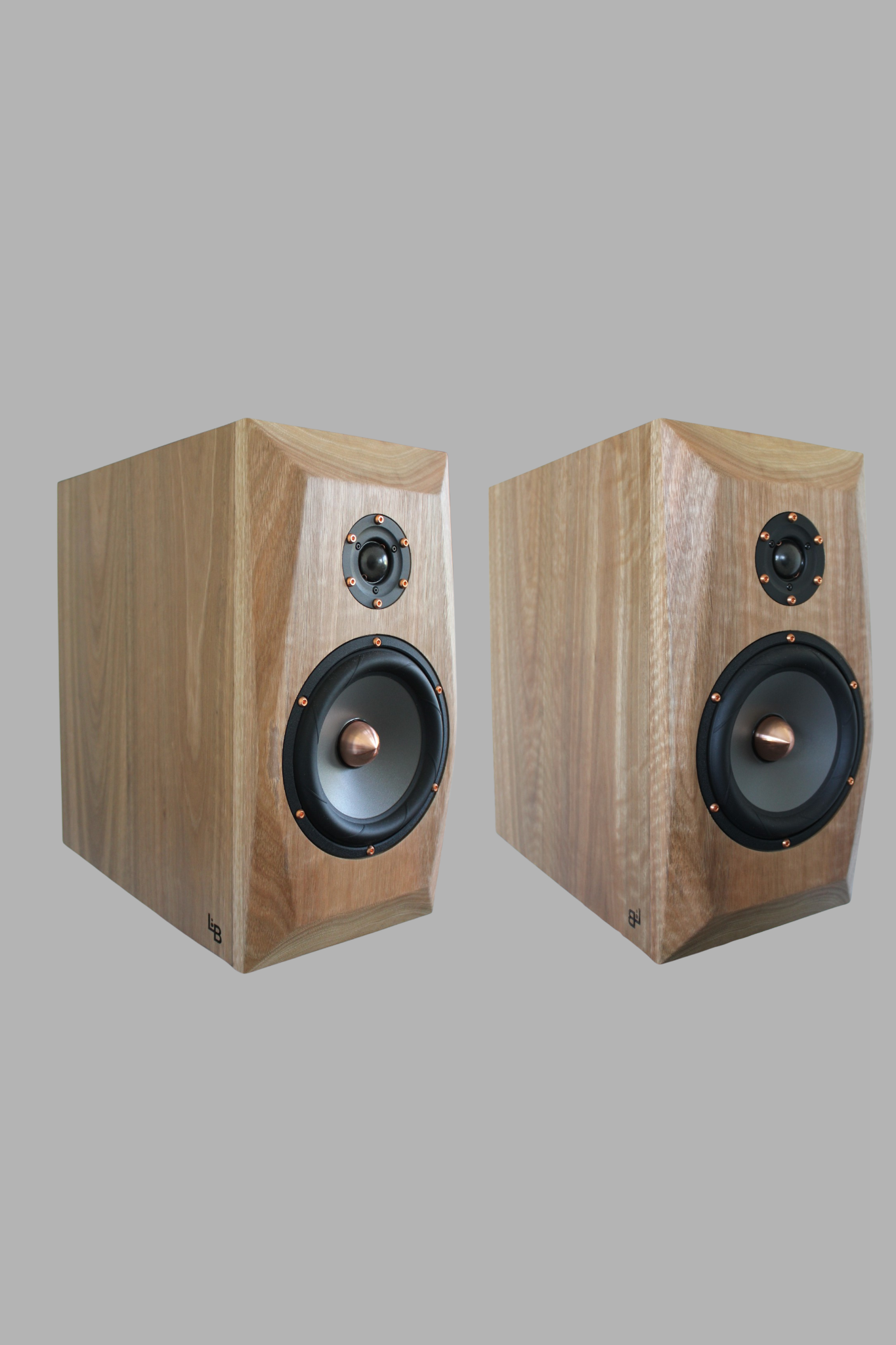

The System 1 is a stand mount 2 way dynamic speaker. The System 1 includes the dedicated tuned isolation stands, and are essential to maximise the performance of the speaker system in roomSolid wood cabinets, crafted from sustainable timbers are used exclusively.

Select Australian timbers available such as :

Ironbark,
Spotted Gum ,
Tasmanian Oak,
Bamboo and
Merbau

The grilles are magnetically fastened, and are acoustically transparent. You may choose to listen to the speakers with or without the grilles.

Design Goals

Flat frequency response in room.
Smooth off axis response
Linear phase response
Phase and amplitude correct crossover integration
Optimum listening area and minimizing boundary reflection anomalies
Minimal enclosure energy storage
Isolation from room feedback and structural vibration
High power handling
Smooth impedance curve and able to be driven by both Tube and solid-state electronics

Specifications

Cabinet

Composite 19 to 37mm timber laminated to 10mm aluminium /4mm sprung steel plate. Differential Cancellation bracing utilising 35mm and 22mm hardwood dowel and 19mm Birch Plywood. Proprietary integration of enclosure substrate steel plate with Crossover network ground planes

Crossover construction

Full hardwire hand build, all joints are high pressure low contact area cold weld sealed with Teflon wrap

Inductors Goertz Copper Foil Inductors 12 AWG

Capacitors Series Jantzen Alumin cap 100 volt . Parallel: Jantzen Cross CapPolypropylene film capsBypass : Cornell Dubilier

Resistors: Dale Vishay 10 w 1% ToleranceHigh

Frequency driver : Morel Supreme 28mm chambered textile domeMid-bass driver : Seas Excel 19 cm Magnesium GrapheneWiring: Lenehan Audio OFC copper foilInput connection : ETI Research Binding Posts. Frequency Response: 35 - 25Khz +/- 1.5db (in room)Sensitivity: 86.5dB @ 2.83V/m 1 meterImpedance: 8 ohms nominal 6 ohms minimumRecommended amplifier wattage: 20 - 700W

Cabinet dimensions (HxWxD)

420 x 215 x 400mm (16.5 x 8.4 x 15.7")

Weight

1 speaker 28kg

1 stand 20kg

Isolation Stands

Specifications

The isolation stands are integral to the System 1. They are available separately as the ultimate platform for any standmount loudspeaker .

Available in either mild steel or aluminium. Either version offers the same performance. The finish is texture black powder coated as standard. A wide range of colour finishes are available.

Dimensions : Height 57 cm ( with pods attached)

Top plate: 19 cm Wide 34cm deep

Base plate: 43 cm Wide 45cm deep

Weight (with sand filled columns)

Steel 28 kg each

Aluminium 20 kg each

The base plate is tapped with m8/1.25p thread to locate and adjust the isolation pods. A spiked option is available on request. Aftermarket spikes or footers can be used.

Shipping & Warranty

Receiving your Speakers

Shipping

Shipping costs are not calculated at checkout. We will contact you after purchase to organise the most cost effective shipping for your location for you. So please be prepared for a shipping invoice after purchase. Product prices include GST.

Shipping Weight

4 cartons 100 kg total

Your pair of speakers include individual * frequency response * Impedance* waterfall plots

Warranty

5 years. Parts and labour.

30 day 100% money back guarantee.

Contact Lenehan Brothers for details.
