Speakers

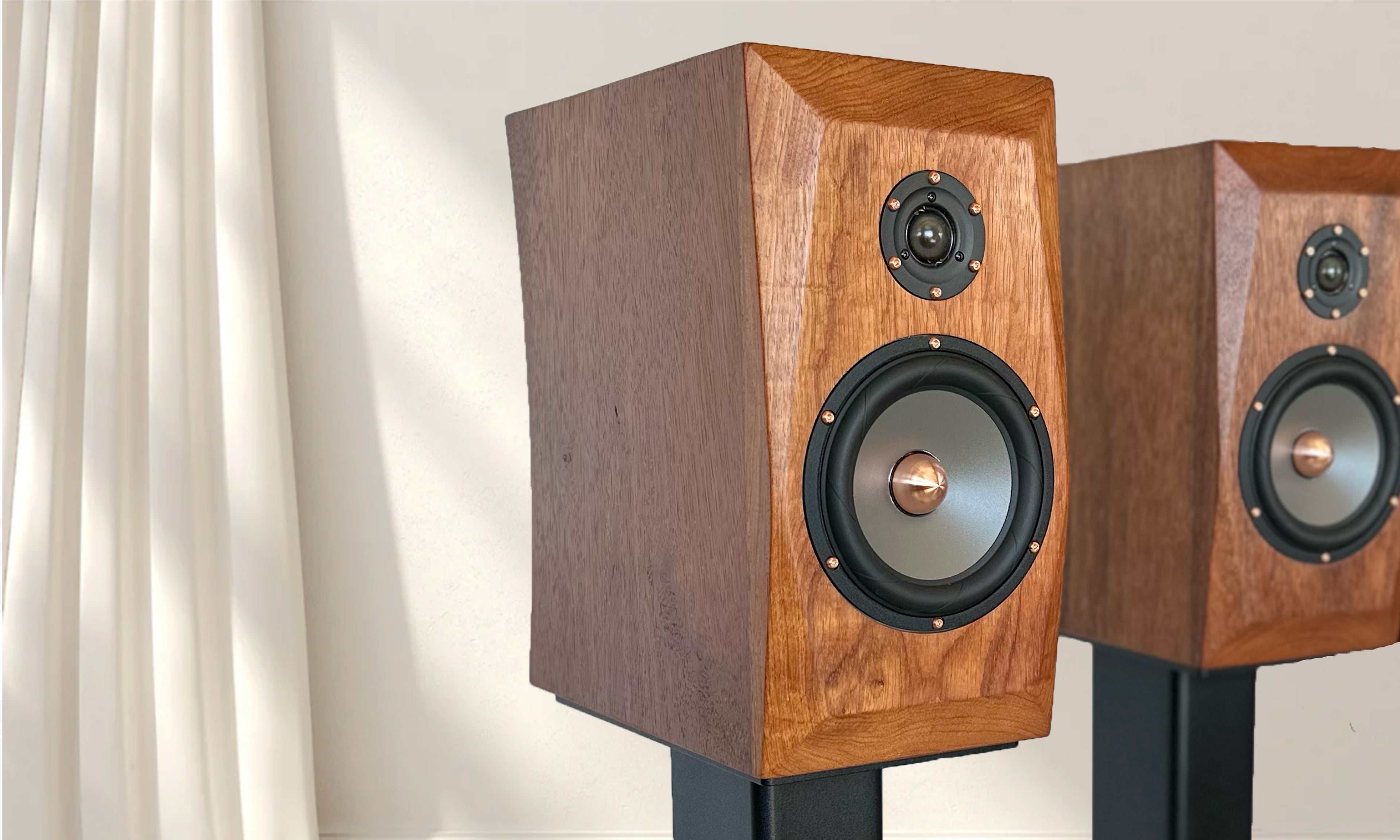

The System 1 is a stand mount 2 way dynamic speaker. The System 1 includes the dedicated tuned isolation stands, and are essential to maximise the performance of the speaker system in roomSolid wood cabinets, crafted from sustainable timbers are used exclusively.
Select Australian timbers available such as :
- Ironbark,
- Spotted Gum ,
- Tasmanian Oak,
- Bamboo and
- Merbau
The grilles are magnetically fastened, and are acoustically transparent. You may choose to listen to the speakers with or without the grilles.
Design Goals
- Flat frequency response in room.
- Smooth off axis response
- Linear phase response
- Phase and amplitude correct crossover integration
- Optimum listening area and minimizing boundary reflection anomalies
- Minimal enclosure energy storage
- Isolation from room feedback and structural vibration
- High power handling
- Smooth impedance curve and able to be driven by both Tube and solid-state electronics
Specifications
Cabinet
Composite 19 to 37mm timber laminated to 10mm aluminium /4mm sprung steel plate. Differential Cancellation bracing utilising 35mm and 22mm hardwood dowel and 19mm Birch Plywood. Proprietary integration of enclosure substrate steel plate with Crossover network ground planes
Crossover construction
Full hardwire hand build, all joints are high pressure low contact area cold weld sealed with Teflon wrap
Inductors Goertz Copper Foil Inductors 12 AWG
Capacitors : Series Jantzen Alumin cap 100 volt .
Parallel: Jantzen Cross Cap Polypropylene film caps
Bypass : Cornell Dubilier
Resistors: Dale Vishay 10 w 1% Tolerance
High Frequency driver : Morel Supreme 28mm chambered textile dome.
Mid-bass driver : Seas Excel 19 cm Magnesium Graphene.
Wiring: Lenehan Audio OFC copper foil.
Input connection : ETI Research Binding Posts.
Frequency Response: 35 - 25Khz +/- 1.5db (in room)Sensitivity: 86.5dB @ 2.83V/m 1 meter.
Impedance: 8 ohms nominal 6 ohms minimum.
Recommended amplifier wattage: 20 - 700W
Cabinet dimensions (HxWxD)
420 x 215 x 400mm (16.5 x 8.4 x 15.7")
Weight
1 speaker 28kg
1 stand 33kg
Total Shipping Weight : 4 Cartons 125 kg
Isolation Stands
Specifications
The isolation stands are integral to the System 1. They are available separately as the ultimate platform for any standmount loudspeaker .
Available in either mild steel or aluminium. Either version offers the same performance. The finish is texture black powder coated as standard. A wide range of colour finishes are available.
Dimensions : Height 57 cm ( with pods attached)
Top plate: 19 cm Wide 34cm deep
Base plate: 43 cm Wide 45cm deep
Weight (with sand filled columns)
Steel 28 kg each
Aluminium 20 kg each
The base plate is tapped with m8/1.25p thread to locate and adjust the isolation pods. A spiked option is available on request. Aftermarket spikes or footers can be used.
